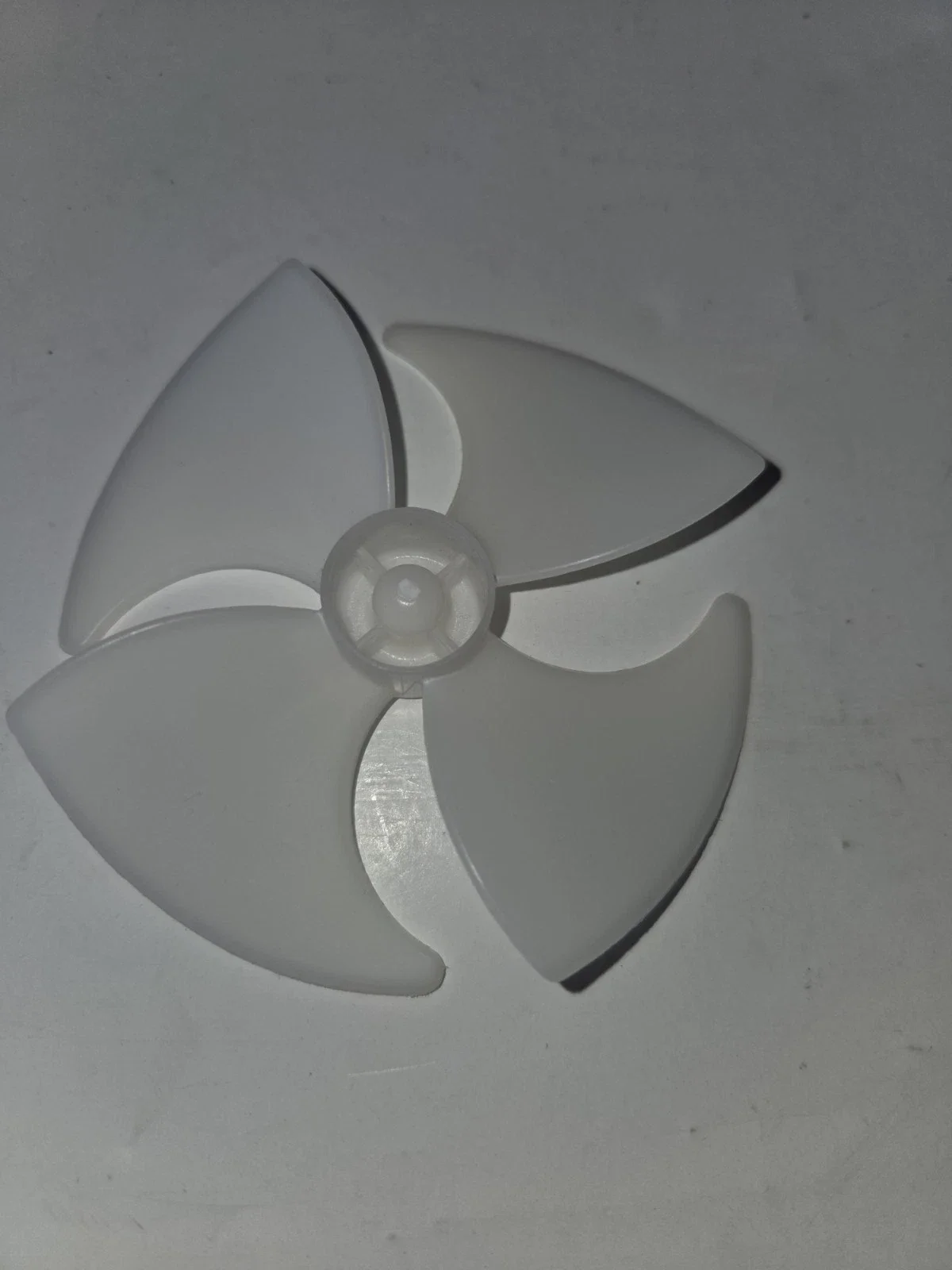

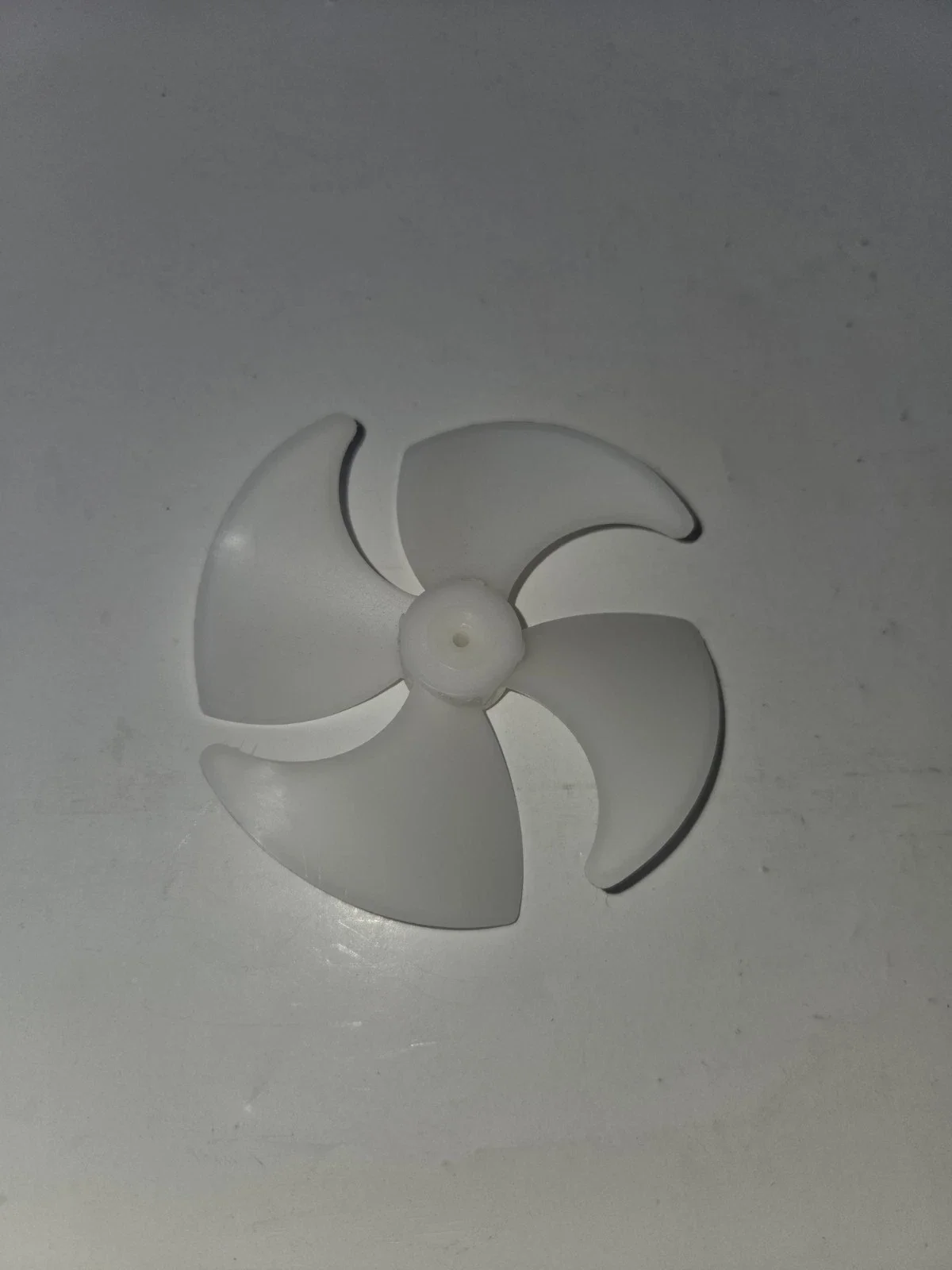

OEM Whirlpool Refrigerator Evaporator Fan Motor Blade – WP2169142 / 2169142 NEW

Sale!
OEM Whirlpool Refrigerator Evaporator Fan Motor Blade – WP2169142 / 2169142 NEW
$17.00 $41.00
Item number: DLAP-0325

Restore efficient airflow and quiet cooling operation across your appliance. This authentic factory OEM 4-paddle evaporator fan blade presses directly onto the evaporator fan motor shaft, drawing sub-zero air across the cooling coils to maintain consistent food preservation temperatures without blade wobble or buzzing noises.

  • Part Numbers: WP2169142 (Stamped: 2169142; Replaces: 12217201, 2154800, 447427, 67005684, 8170544, 8208312, AP6005911, PS11738973, EAP11738973, Y67005684, 00416121, 416121)

  • Dimensions: 12.4 cm Overall Diameter; 0.32 cm (1/8") push-on motor shaft hub bore.

  • Design: 4-paddle counter-clockwise (CCW) rotation aerodynamic fan wheel molded from flexible, low-temperature engineered polymer to prevent cracking in sub-zero freezer environments.

  • Compatibility: Whirlpool, Kenmore (106 / 596 series), KitchenAid, Maytag, Amana, Estate, Roper, Inglis, and Bosch side-by-side and top-mount refrigerators.

Pro Tip: Disconnect electrical power before accessing the freezer rear evaporator shroud. Push the hub firmly onto the motor shaft until it stops, ensuring the blade spins freely by hand without contacting the rear metal cover or coil fins.
