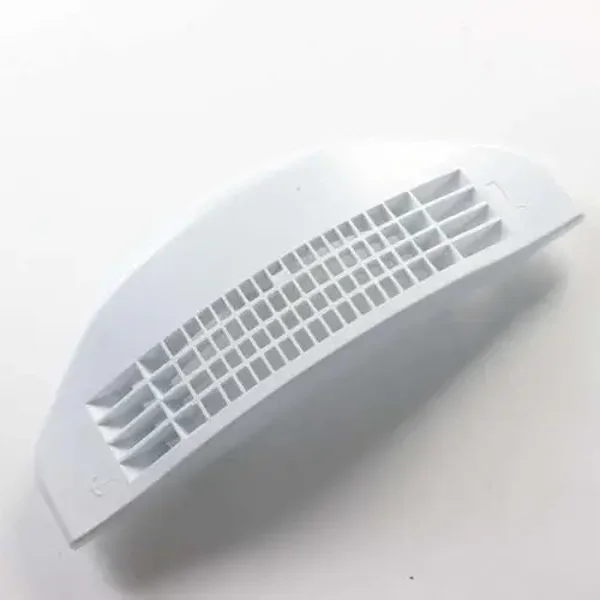

OEM Whirlpool Refrigerator Freezer Air Vent Grille / Louver – WPW10175909 / 130248

Sale!
OEM Whirlpool Refrigerator Freezer Air Vent Grille / Louver – WPW10175909 / 130248
$52.00 $83.60
Item number: DLAP-0326

Restore balanced air distribution and cover internal fan components inside your freezer. This authentic factory OEM white evaporator discharge vent grille clips into the rear interior freezer back panel, directing chilled air across food packages while keeping frozen items from obstructing the evaporator fan blades.

  • Part Numbers: WPW10175909 (Stamped: 130248 / 13024802 / 13024803; Replaces: W10175909, 8170881, 67001079, 67006609, 1455612, AP6016326, PS11749612, EAP11749612)

  • Dimensions: 26.5 cm Length × 12.0 cm Width × 2.8 cm Depth

  • Design: Molded white low-temperature engineered polymer grille featuring directional louver vents and integrated chassis retention tabs.

  • Compatibility: Whirlpool, Maytag, KitchenAid, Amana, Kenmore (596 series), Jenn-Air, and Inglis bottom-mount and French-door refrigerators.

Pro Tip: Disconnect electrical power before servicing the freezer compartment. Align the molded retention clips with the slots in the back wall evaporator cover and press gently until the tabs click into place.
