NEW OEM Whirlpool FSP Washing Machine Belt-Driven Water Pump Kit (3-Port) – 285317

NEW OEM Whirlpool FSP Washing Machine Belt-Driven Water Pump Kit (3-Port) – 285317
$60.00
Item number: DLAP-0340

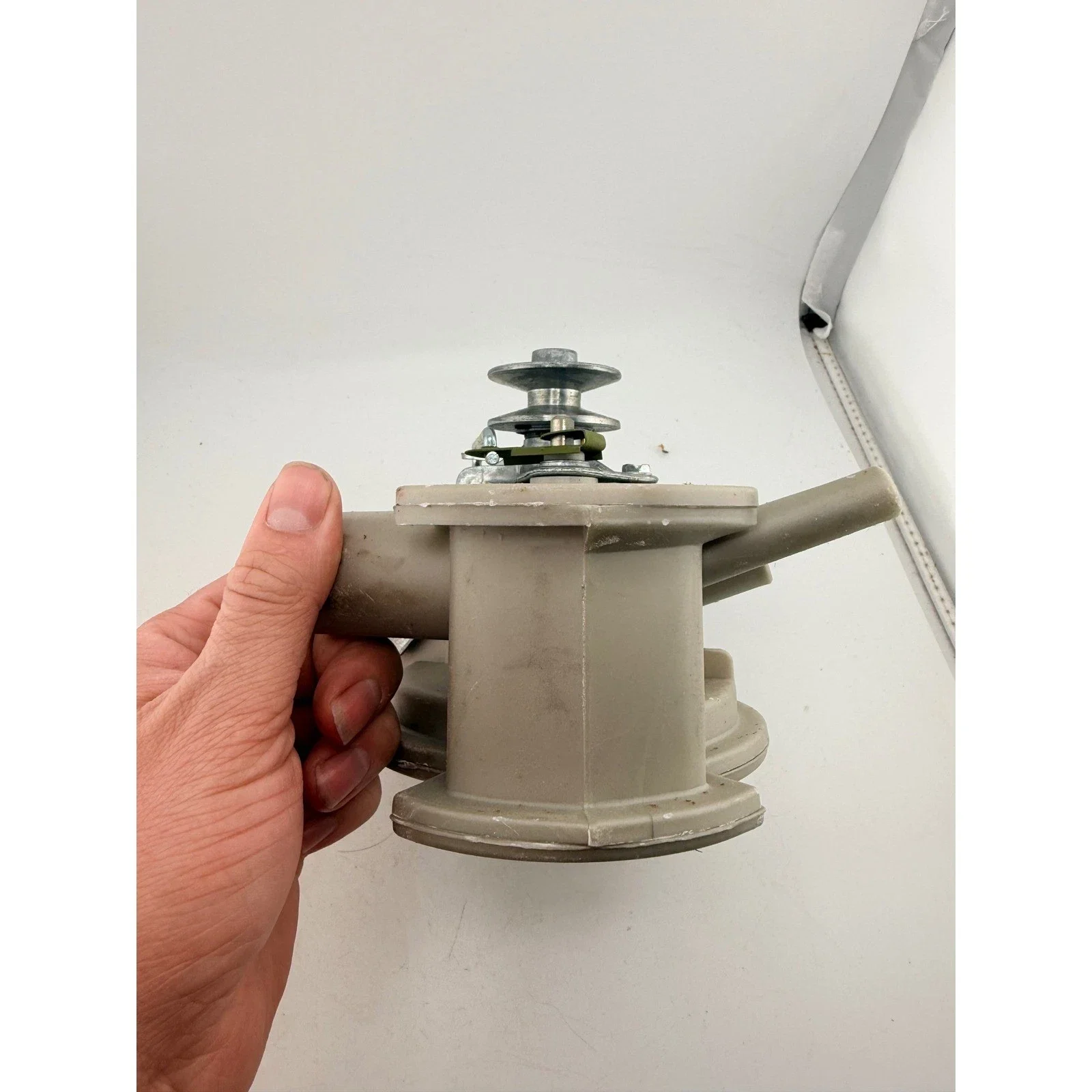

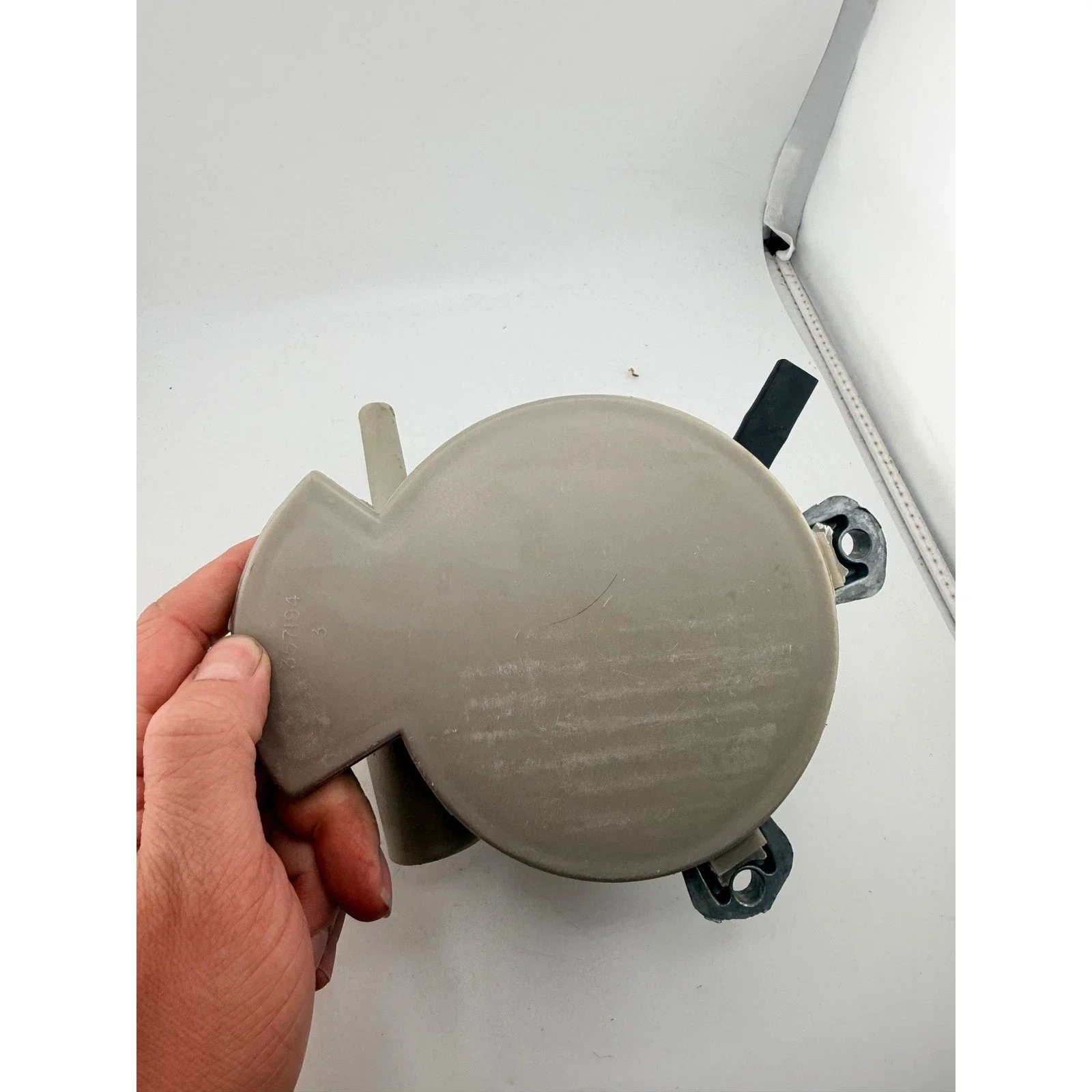

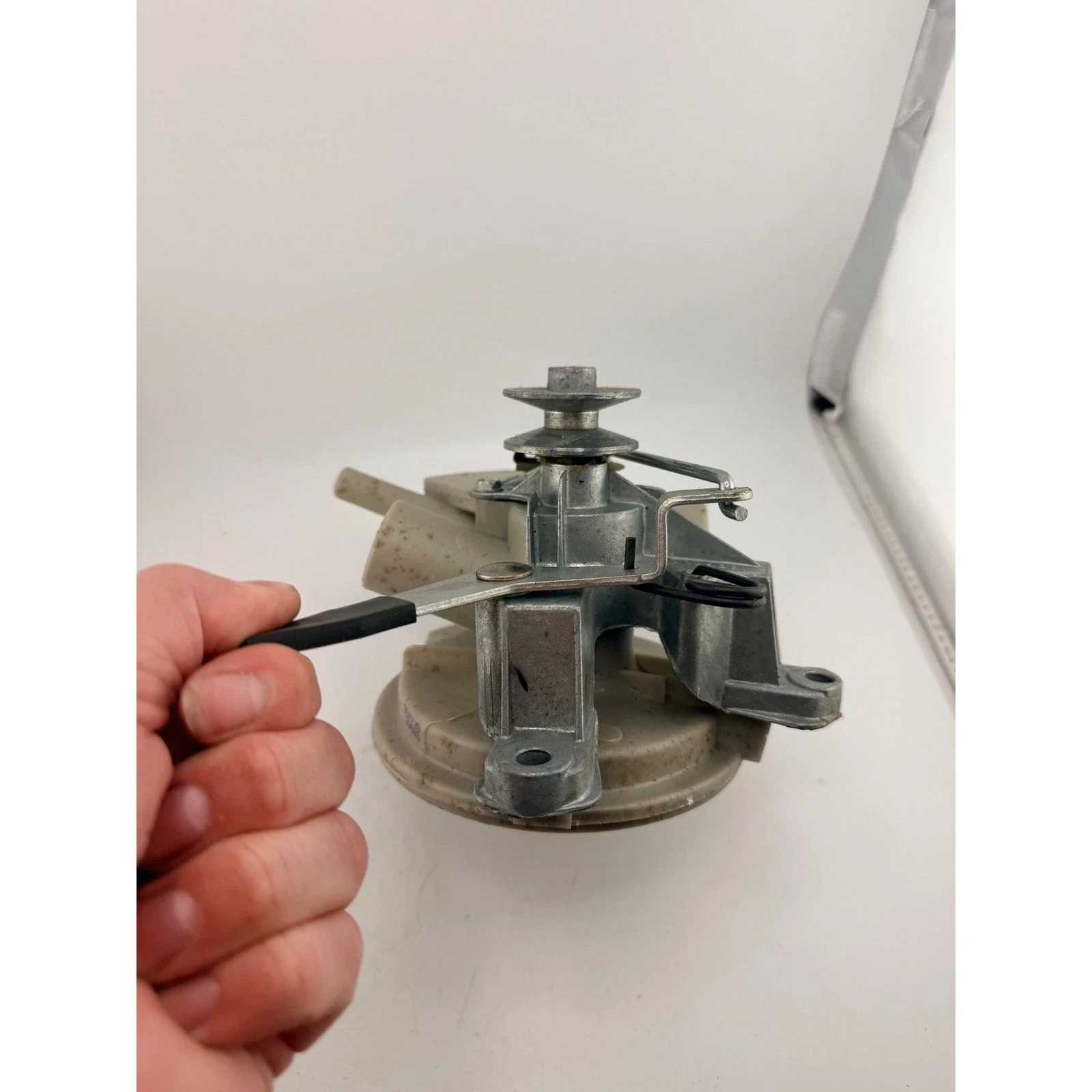

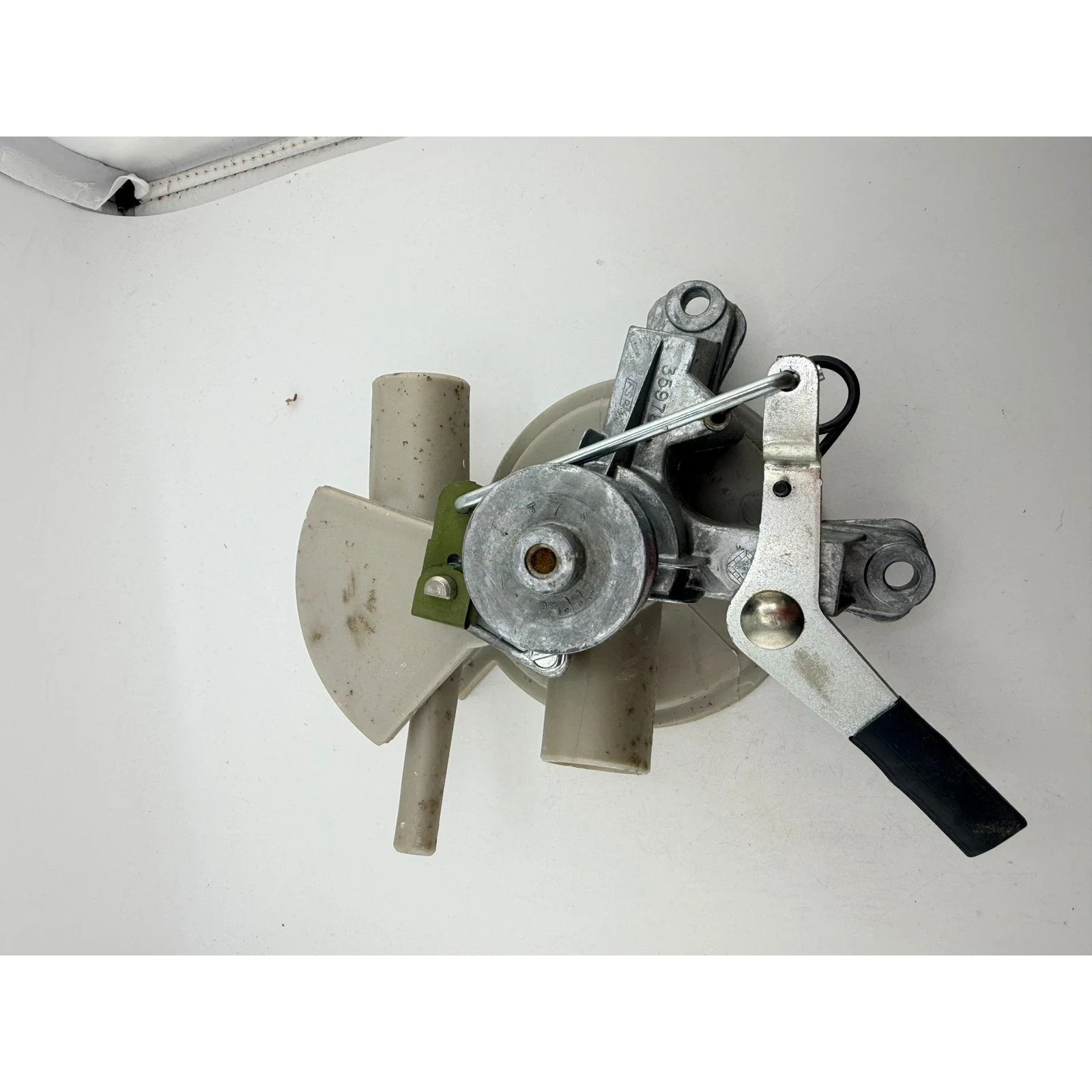

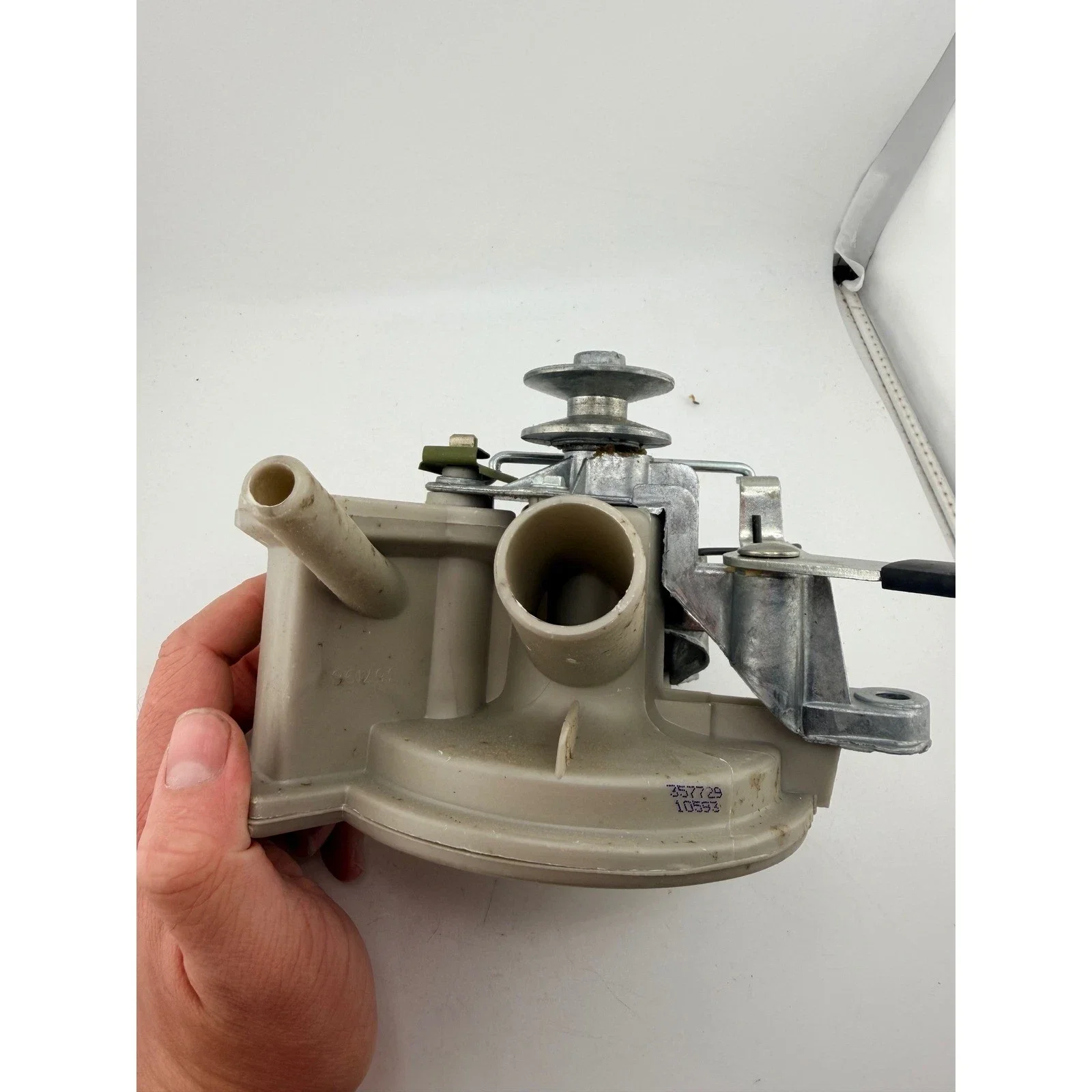

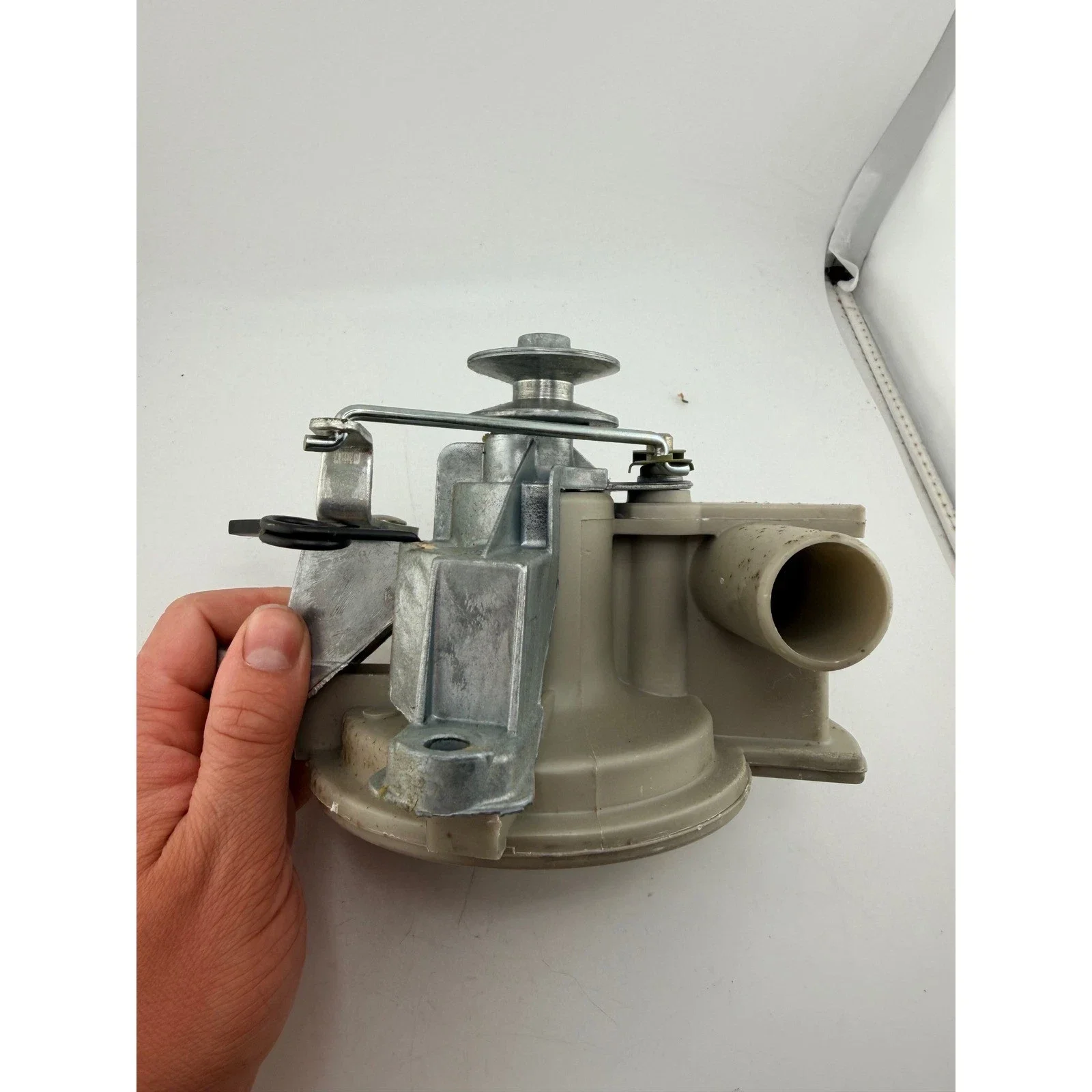

Restore positive wash water circulation and rapid drain expulsion on classic belt-drive top-load washing machines. This genuine factory OEM vintage FSP service kit features a heavy-duty mechanical water pump with 3-port plumbing routing, engineered to operate via the main drive belt system beneath the outer tub.

  • Part Numbers: 285317 (Master OEM Kit; Replaces: 350365, 350366, 350367, 353244, 358317, 370444, 370445, 62558, 62688, 63337, 63847, AP3103509, PS334641, EAP334641)

  • Drive Configuration: Mechanical belt-driven pulley system with factory internal shaft seals.

  • Port Plumbing: 3-hose barb design (can also convert to 2-port configurations using the included auxiliary port cap/clamp).

  • Dimensions: 14.5 cm Length × 12.0 cm Width × 10.5 cm Height

  • Compatibility: Vintage Whirlpool, Sears Kenmore (110 series belt-drive), Inglis, and Roper top-load washing machines.

Pro Tip: Disconnect power and drain standing tub water before disconnecting hoses. When retrofitting a 2-hose system, clamp the auxiliary bypass port securely before mounting.
