USED OEM GE / Hotpoint / Mabe Washing Machine Main Electronic Control Board – WCC101K / 189D5039G001 / 233D1652G001

USED OEM GE / Hotpoint / Mabe Washing Machine Main Electronic Control Board – WCC101K / 189D5039G001 / 233D1652G001
$55.00
Item number: DLAP-0366

Restore full cycle operation, motor drive switching, and responsive user settings to your washing machine. This authentic factory OEM main printed circuit board assembly controls water fill valves, agitation, spin cycles, and drain sequencing on select GE, Hotpoint, and Mabe top-load and compact washers.

  • Part Numbers: WCC101K (Engineering Series Stamped; Associated Board Numbers: 189D5039G001, 233D1652G001, WW03F00103)

  • Electrical Rating: 120V AC, 60Hz

  • Dimensions: 18.0 cm Length × 11.5 cm Width × 4.2 cm Height

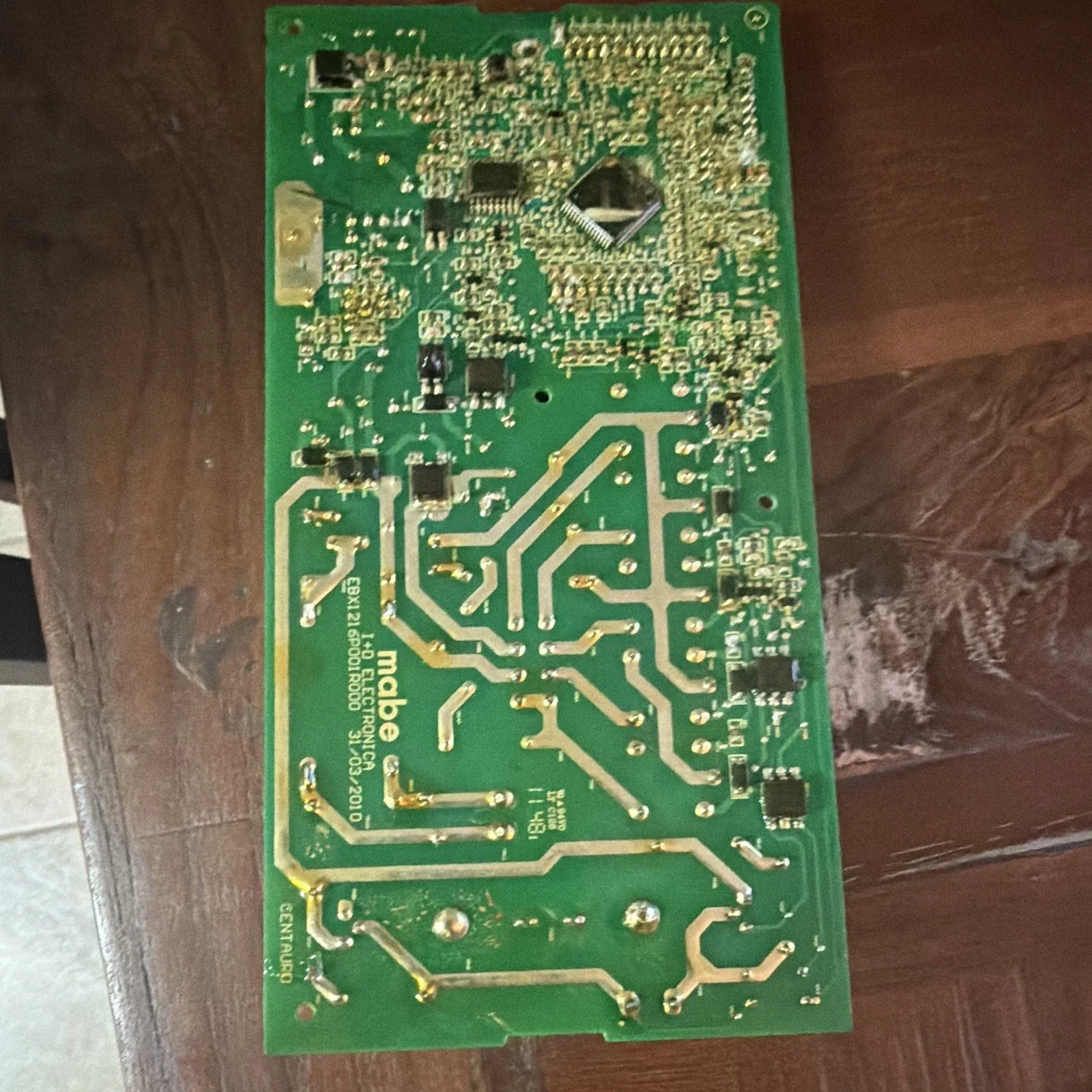

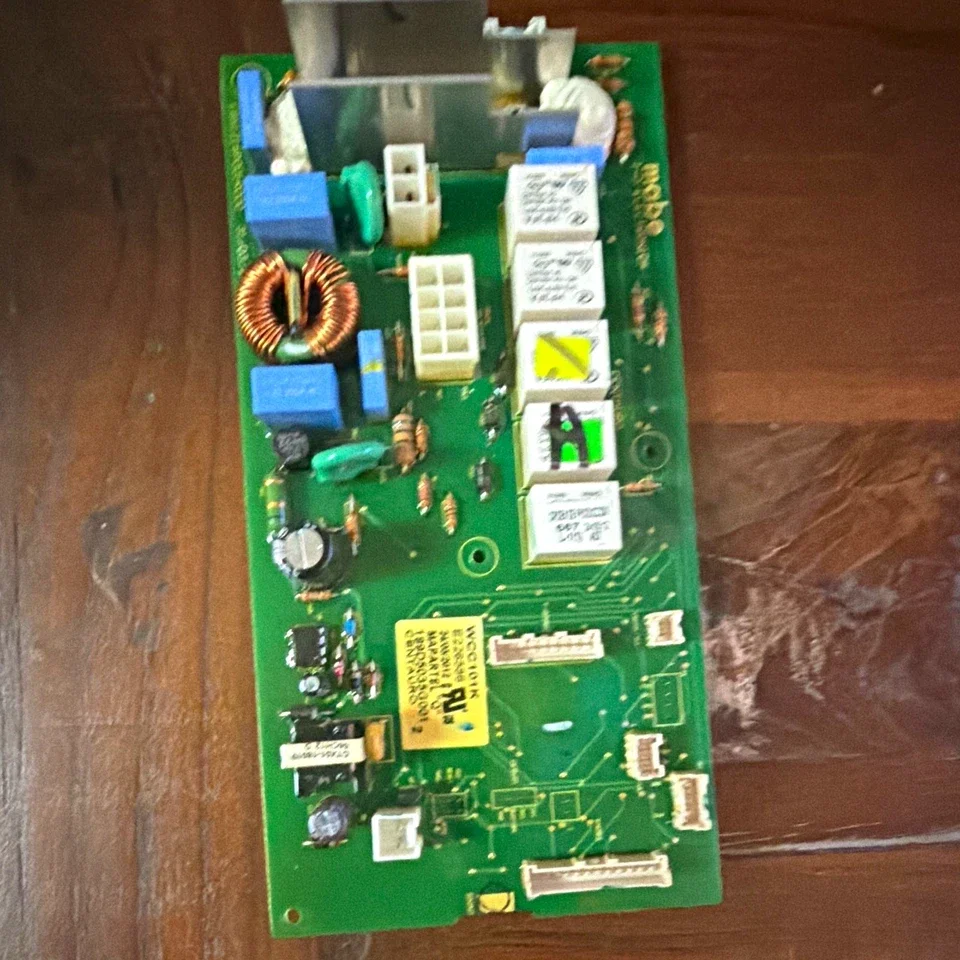

  • Component Features: Heavy-duty printed circuit board equipped with an integrated heat sink, power switching relays, noise suppression capacitors, and factory keyed multi-pin wiring harness headers.

  • Compatibility: GE, Hotpoint, and Mabe automatic washing machines.

Pro Tip: Always disconnect power before opening the control console. Ground yourself to prevent static discharge to board microprocessors, and take a quick photo of your wire harness connectors to ensure exact terminal pin alignment during reassembly.
