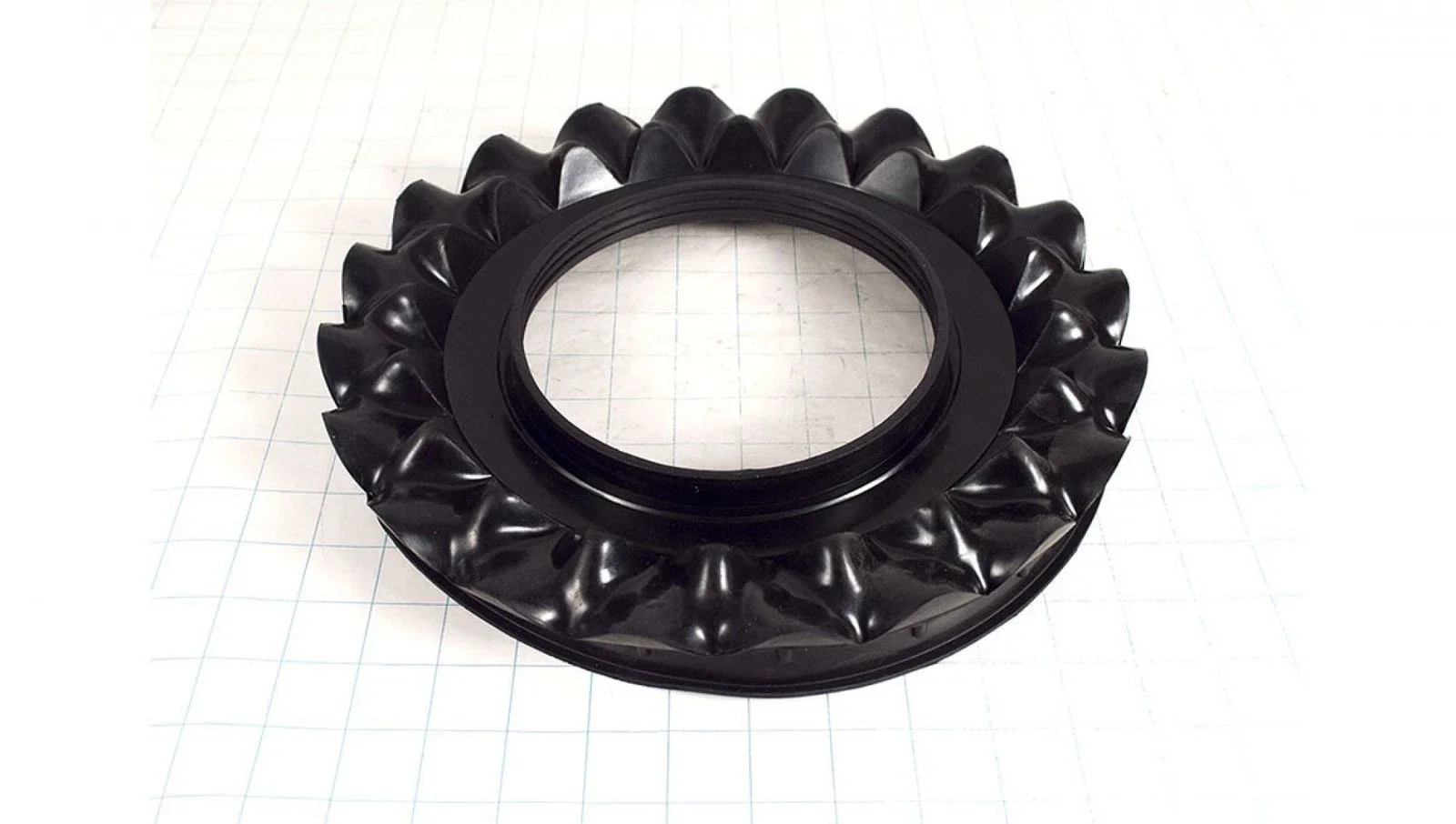

NEW OEM GE / Hotpoint Washing Machine Transmission Tub Boot Seal Bellows – WH8X246 / WH08X10018

NEW OEM GE / Hotpoint Washing Machine Transmission Tub Boot Seal Bellows – WH8X246 / WH08X10018
$65.00
Item number: DLAP-0368

Prevent bottom-tub water leakage around the central drive transmission. This authentic factory OEM rubber tub boot seal forms a flexible, watertight barrier between the stationary outer wash tub sump opening and the oscillating transmission mechanism on classic top-load washers.

  • Part Numbers: WH8X246 (Catalog Reference: WH08X10018; Supersedes / Cross-Ref: WH08X0246, WH8X10018, AP2045438, PS271318, EAP271318, LP510, 278144, AH271318, EA271318)

  • Material: Heavy-duty, detergent-resistant molded synthetic rubber with multi-ribbed flex bellows.

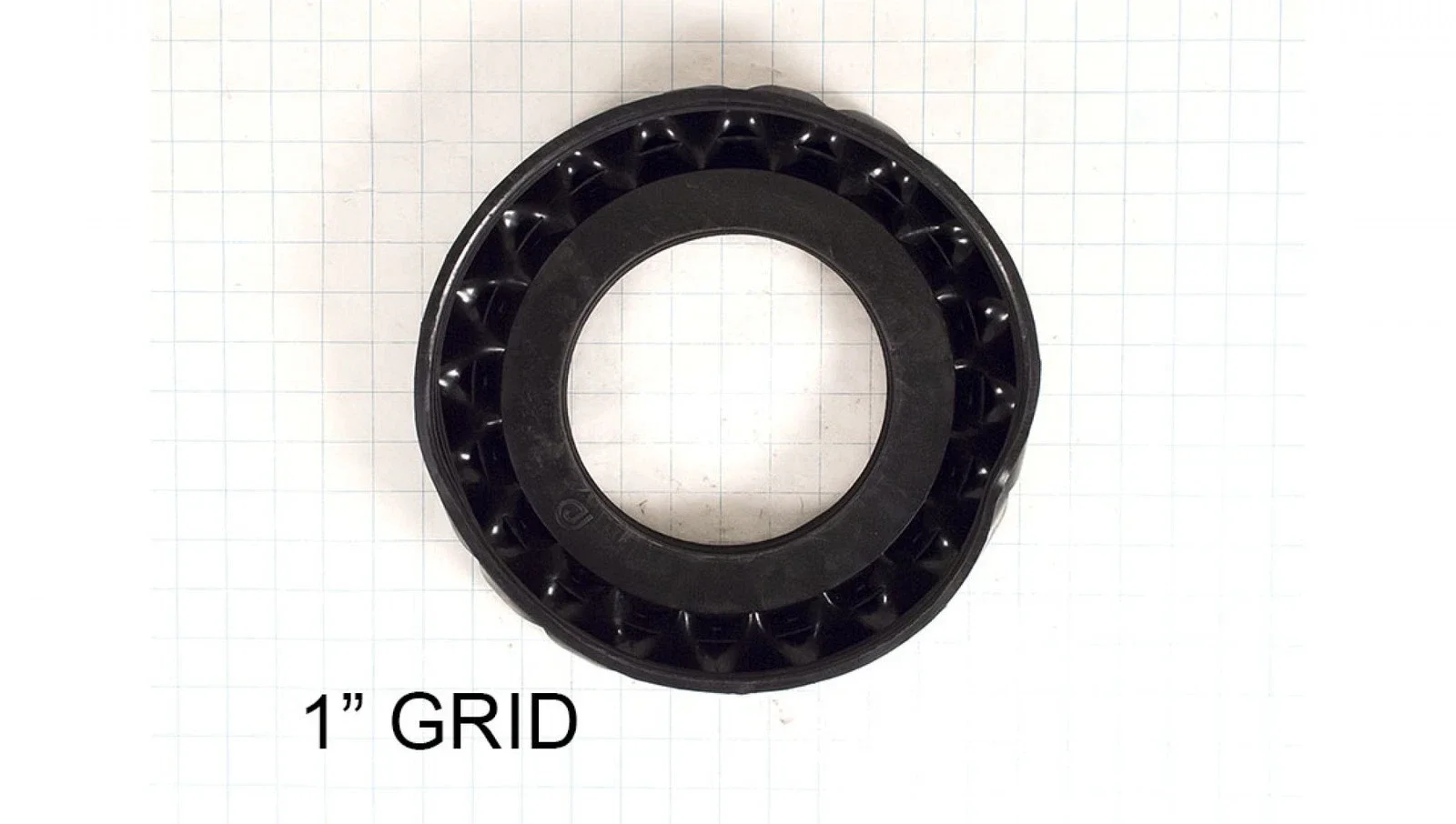

  • Dimensions: 16.5 cm Outer Flange Diameter × 12.0 cm Inner Collar × 9.5 cm Height

  • Compatibility: Vintage and classic GE, Hotpoint, RCA, and JC Penney top-load automatic washing machines (including WWA, WWSR, WSM, WLW, and related platforms).

Pro Tip: Clean the tub flange and transmission housing mating surfaces thoroughly to remove mineral scale and corrosion before installing. Use a small amount of liquid dish soap as a lubricant to ease the rubber collar over the transmission hub without tearing.
