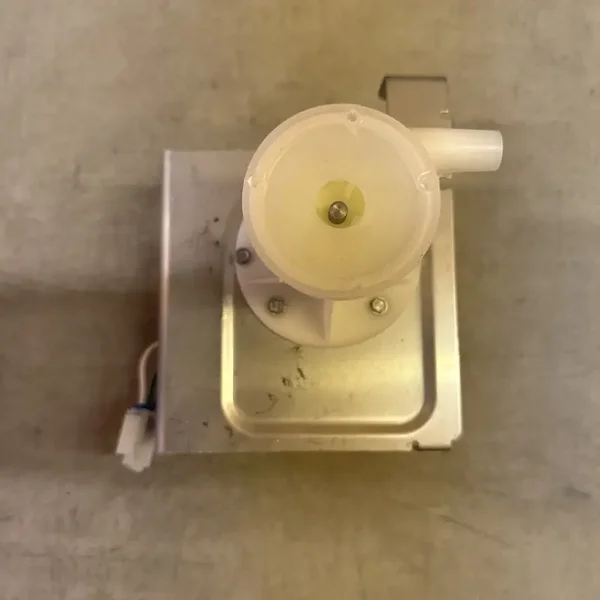

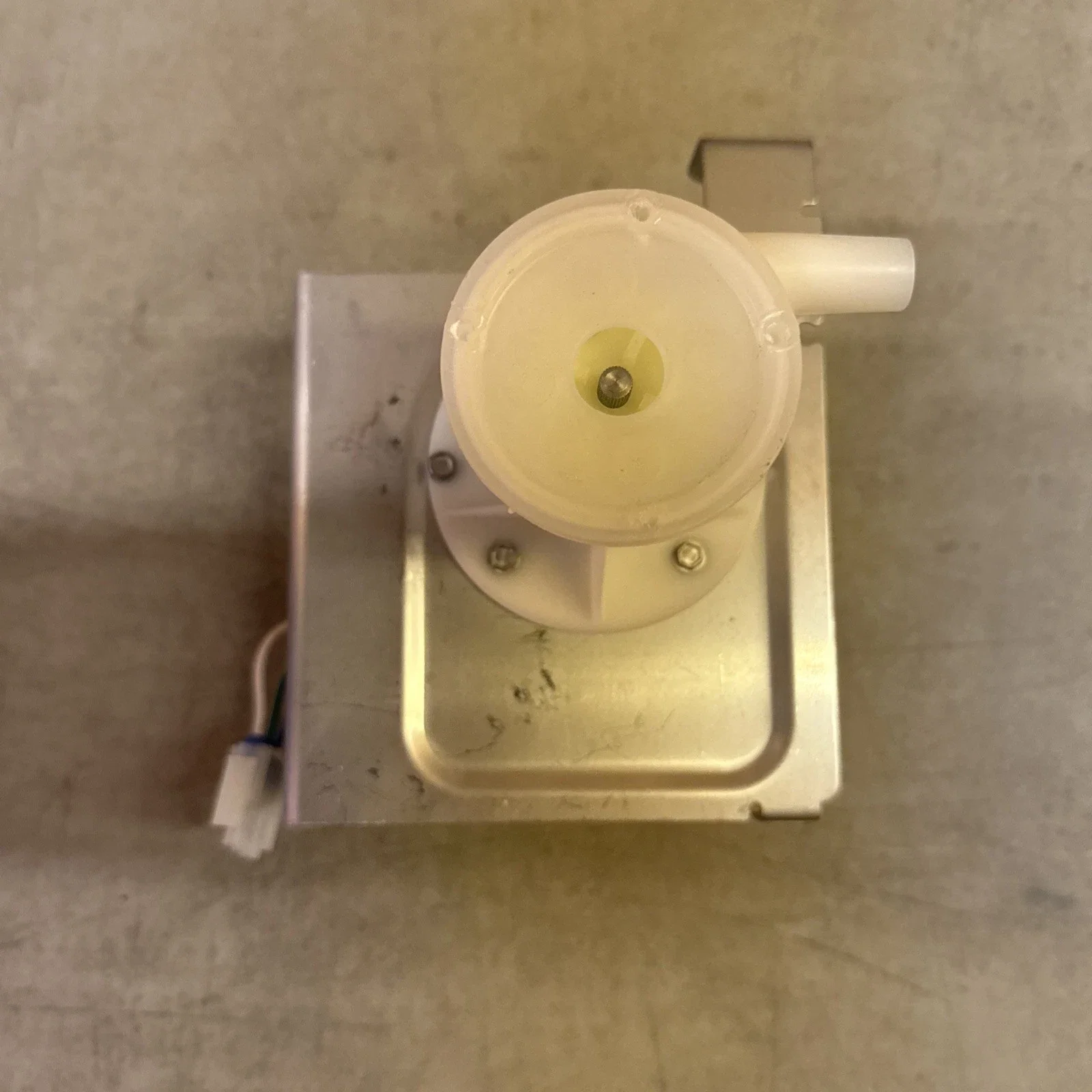

NEW OEM Whirlpool / KitchenAid Undercounter Ice Maker Recirculation Pump & Motor Assembly – WP2217220 / 2217220

NEW OEM Whirlpool / KitchenAid Undercounter Ice Maker Recirculation Pump & Motor Assembly – WP2217220 / 2217220
$236.00 FREE shipping
Item number: DLAP-0375

Original equipment manufacturer water recirculation pump and motor assembly engineered for Whirlpool, KitchenAid, JennAir, and Kenmore 15-inch and 18-inch freestanding and built-in undercounter clear ice machines. Submerged in the lower water reservoir sump, this pump continually lifts water over the freezing plate grid, allowing pure water molecules to freeze into clear gourmet ice cubes while washing mineral impurities down the drain.

  • Part Numbers: WP2217220 (Catalog Master OEM; Stamped / Interchanges: 2217220, 2185531, 2185748, 2185749, 2185750, 2185751, 2185752, 2185753, 2185754, 2185765, 2185767, 2185854, 2208481, 2208482, AP6006616, PS11739695, EAP11739695, 903746)

  • Electrical Rating: 115V AC, 60Hz, thermally protected shaded-pole continuous-duty motor.

  • Dimensions: 19.5 cm Length × 12.0 cm Width × 11.5 cm Height

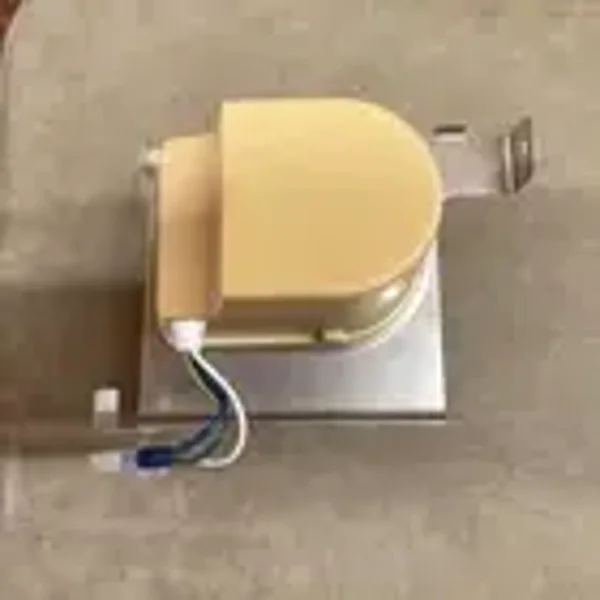

  • Component Features: Sealed upper drive motor housing, corrosion-resistant drive shaft, high-volume centrifugal impeller, and pre-wired factory wiring harness connector.

  • Compatibility: Fits select Whirlpool, KitchenAid (KUIS15, KUIS18, KUIC15 series), JennAir, and Kenmore (106 series) undercounter clear ice makers.

Pro Tip: Mineral scale and lime deposits from hard water can coat the impeller chamber over time. Before installing the replacement pump, run a full cycle of nickel-safe ice machine cleaner through the water reservoir and rinse thoroughly to ensure smooth, quiet pump rotation.
